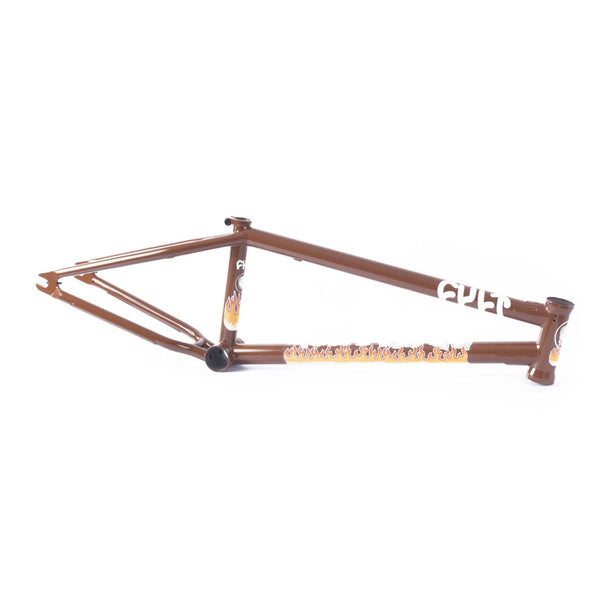

Trey Jones signature frame with NEW GEOMETRY.
* made from 100% cult classic tubing for increased strength *

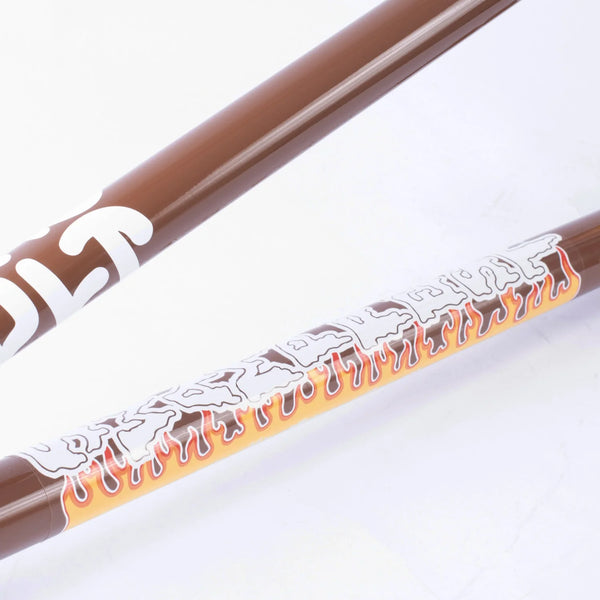

* top and down tube gussets *

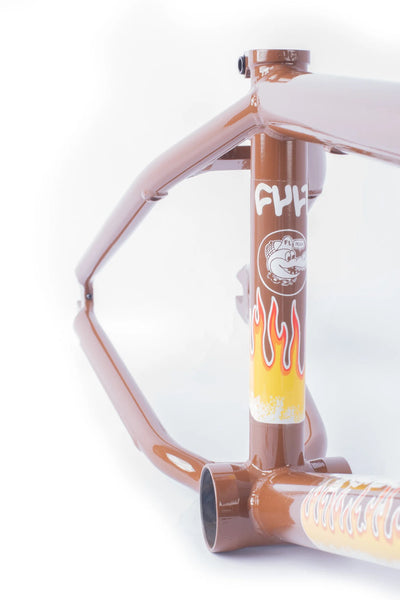

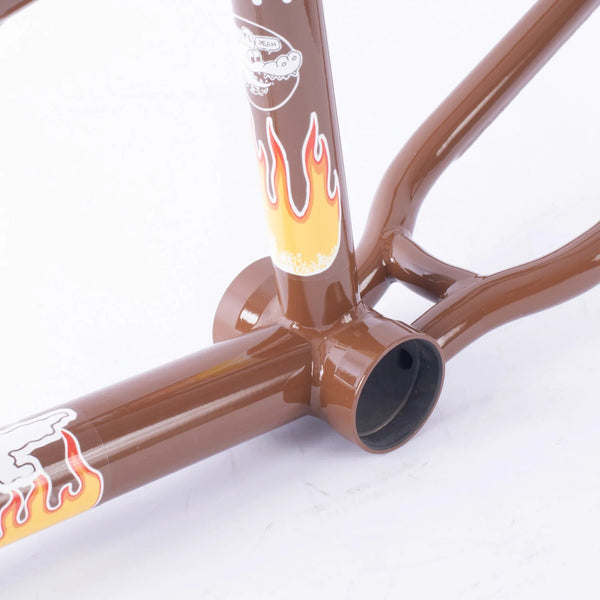

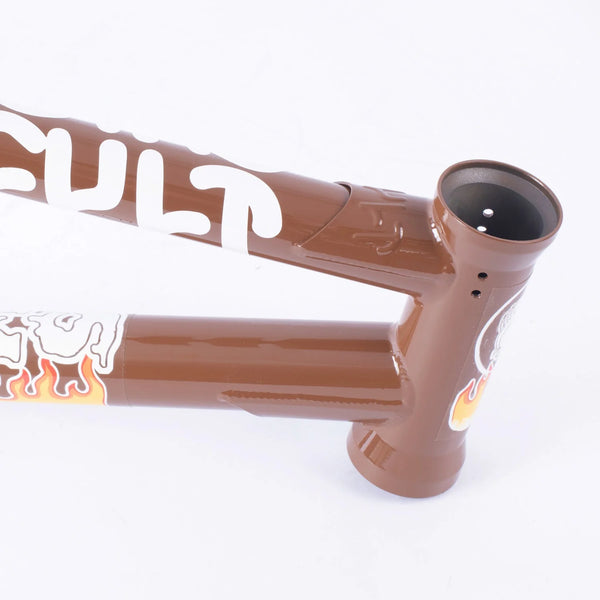

* NEW 5" integrated head tube and mid BB shell *
* integrated head tube and externally machined mid BB shell *

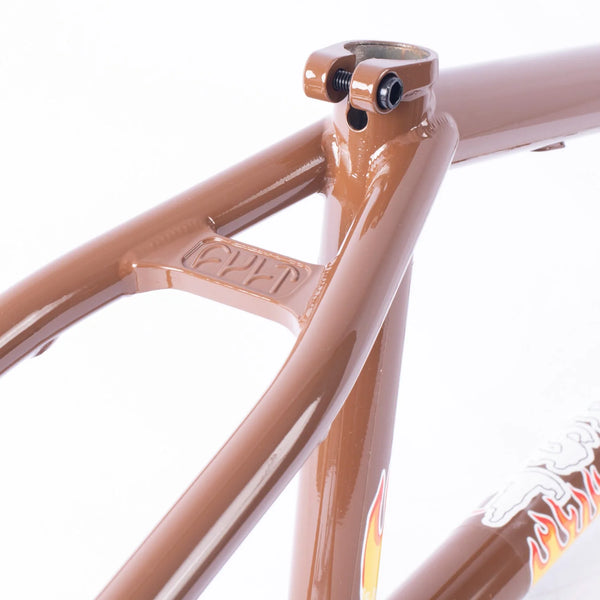

* investment cast seat post clamp and seatstay bridge *
* investment cast chainstay yoke with room for 2.40” tires *
* tapered seatstays *

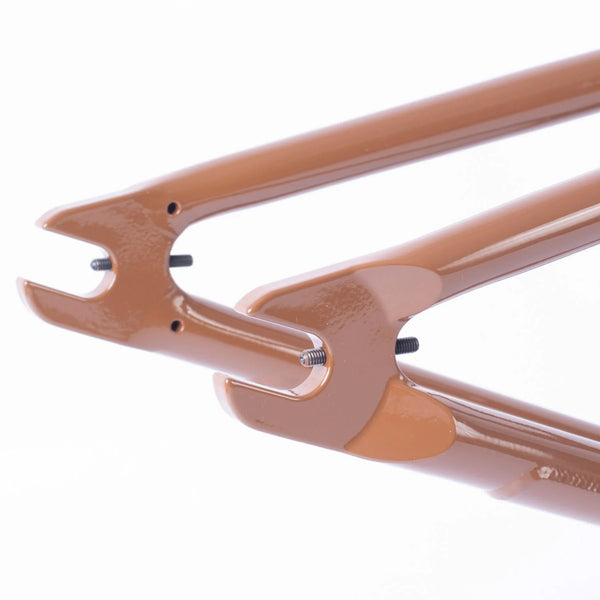

* investment cast heat-treated dropouts w/chain tensioners *
* short, quick, and responsive back end with grind plates welded onto the chainstays*
75° Head Tube
71° Seat Tube
13” - 13.3” chainstay
11.8” Bottom Bracket Height
8.1" Standover Height
