Geometry
- Top Tube Length: 21"
- Headtube angle: 75°
- Seat tube angle: 71°
- Standover Height: 9"
- Bottom Bracket Height: 11.75"
- Chainstay Length: 13" Slammed
- Fork Offset: 30mm
Spec

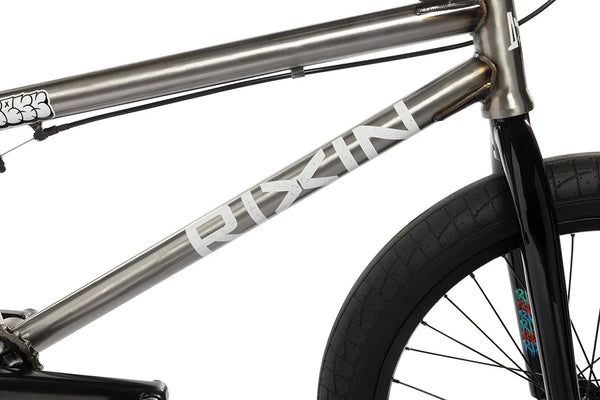

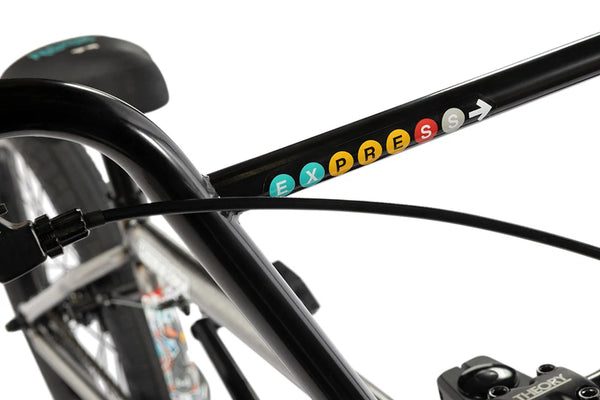

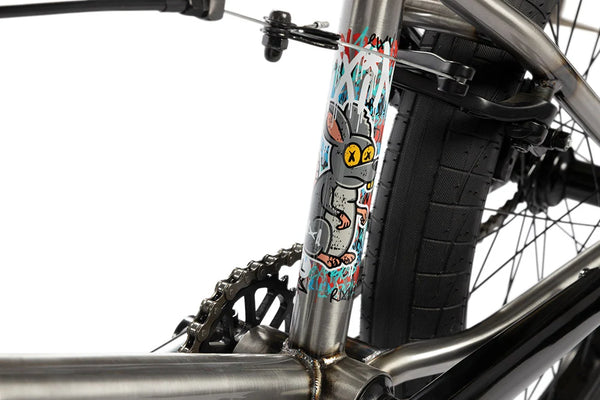

- Frame: 4130 Chromoly DT

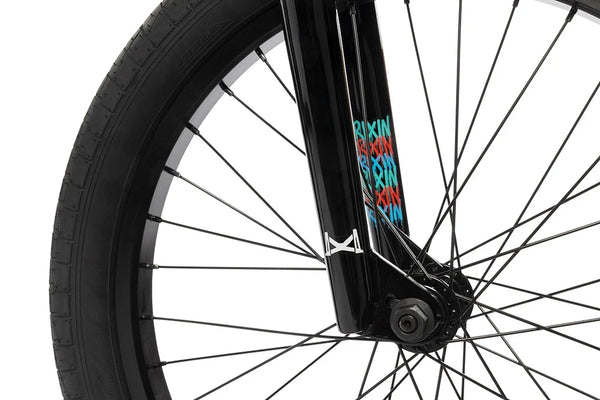

- Fork: 100% 4130 Chromoly w/ Tapered Legs (30mm offset)
- Bars: Hi-Ten (9.25" Rise x 29.5" Wide)
- Grips: Theory Data flanged 150mm w/ Theory Bar ends

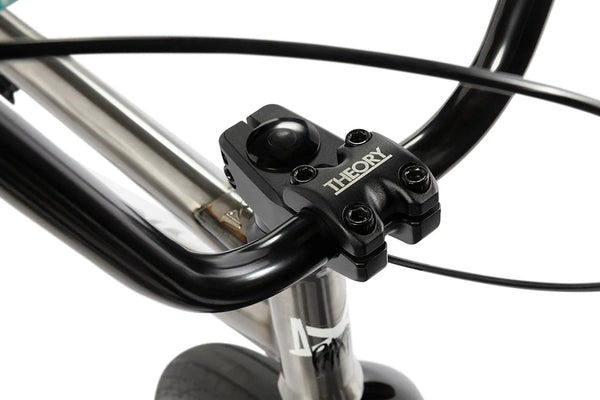

- Stem: Theory Bond Top Load (50mm)

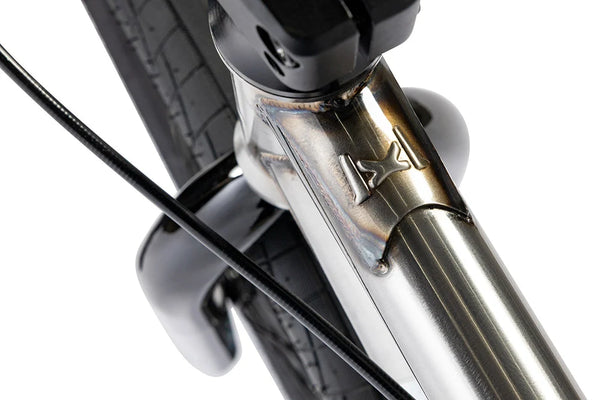

- Headset: Theory Sealed Integrated
- Brake Lever: Alloy 2-Finger
- Brakes: 990 U-brakes
- Cranks: 3-Piece Tubular Chromoly 8-Spline (165mm Length)
- Bottom Bracket: Sealed Mid (19mm)
- Pegs: N/A
- Pedals: Theory Outside Nylon
- Chain: Theory 410

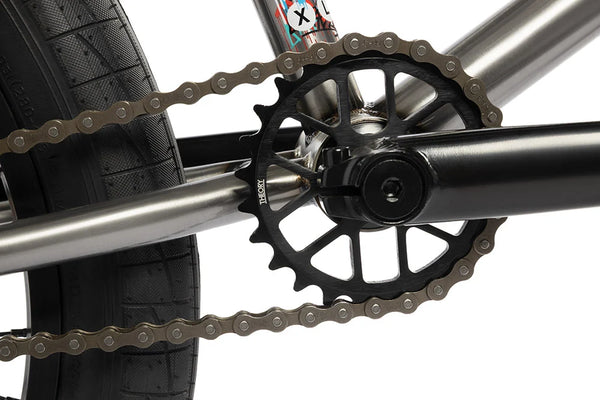

- Sprocket: Theory Verify, 6061-T6 Aluminum (25T)

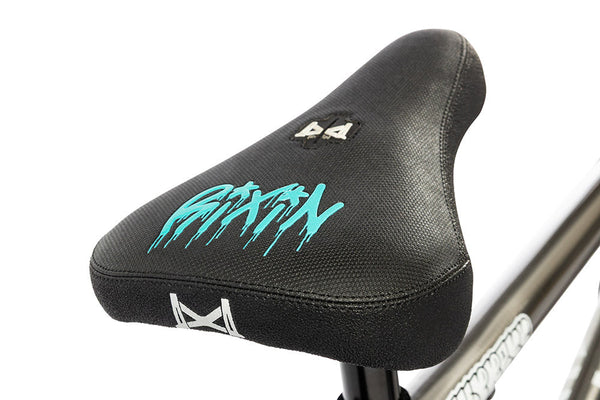

- Seat: Rixin Pivotal
- Seat Post: Alloy Pivotal, 250mm (25.4mm)
- Seat Clamp: Alloy Clamp
- Front Hub: Alloy Low Flange, Sealed (3/8" Axle)
- Rear Hub: Alloy Sealed Cassette (14mm Axle)
- Driver: 9T Sealed
- Rims: 6061 Aluminum Single Wall (36H)
- Tires: Street Design (20 x 2.4")
- Weight: 24lbs 7oz
- Recommended Sizing Guide: 5'1 - 5'8"
